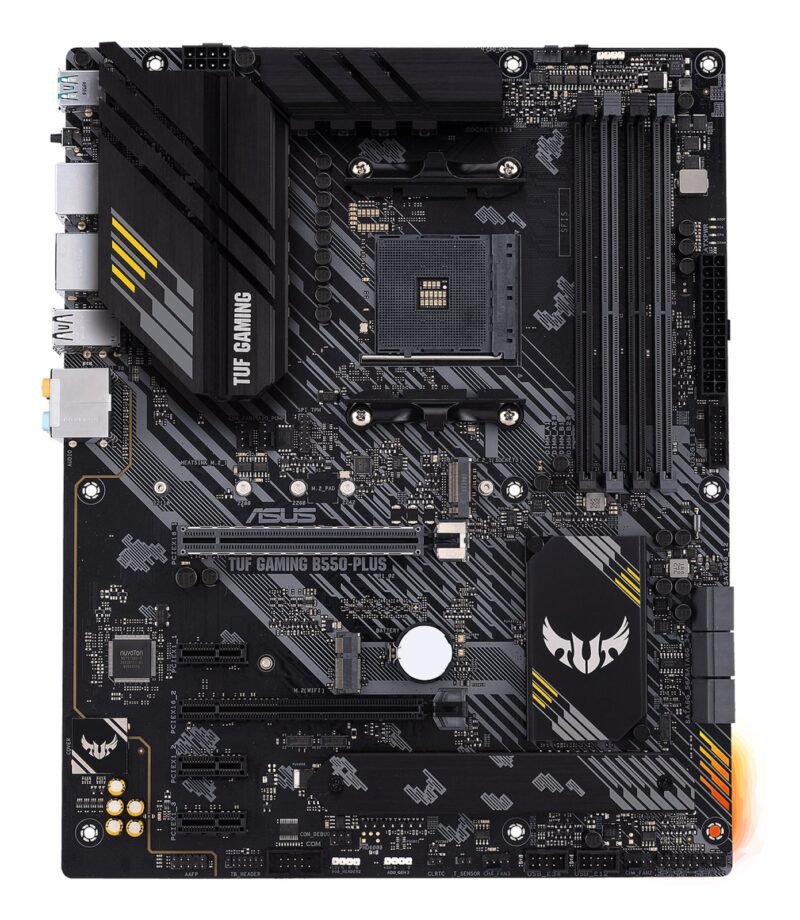

ASUS TUF Gaming B550-PLUS AMD B550 Socket AM4 ATX

by ASUS

EAN 4718017749435 SKU B089HG351D

At a glance

The ASUS TUF Gaming B550-PLUS AMD B550 Socket AM4 ATX (part number B089HG351D) is made by ASUS and is supplied to trade with pricing on enquiry.

About this item

  • AMD AM4 socket: Ready for 3rd Gen AMD RyzenTM Processors
  • Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and Digi+ VRM for maximum durability
  • Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility
  • Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support
  • AI noise-cancelling microphone: Provides crystal-clear in-game voice communication

Product description

ASUS TUF Gaming B550-PLUS. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Parallel processing technology support: 2-Way CrossFireX. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125B

42 facts in 13 groups

Product information

Network5 facts
Network
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerRealtek RTL8125B
Wi-FiNo
Top Wi-Fi standardNot available
Memory6 facts
Memory
Supported memory typesDDR4-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC
Supported memory clock speeds2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz
Maximum internal memory128 GB
Features7 facts
Features
Motherboard chipsetAMD B550
Audio chipRealtek ALC S1200A
Audio output channels7.1 channels
Component forNettop
Motherboard form factorATX
Motherboard chipset familyAMD
Windows operating systems supportedWindows 10 x64
Weight & dimensions3 facts
Weight & dimensions
Width305 mm
Depth244 mm
Height68 mm
Packaging content2 facts
Packaging content
Cables includedSATA
Drivers includedYes
Other features1 fact
Other features
Weight945 g
Identifiers & variants3 facts
Identifiers & variants
EAN / GTIN-134718017749435
Manufacturer part number90MB14G0-M0EAY0
Amazon ASINB089HG351D
Processor4 facts
Processor
Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Ryzen 3000 Series
Supported processor socketsSocket AM4
Storage controllers2 facts
Storage controllers
Supported storage drive interfacesM.2, SATA
RAID supportYes
Graphics1 fact
Graphics
Parallel processing technology support2-Way CrossFireX
Internal I/O5 facts
Internal I/O
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes
Rear panel I/O ports1 fact
Rear panel I/O ports
S/PDIF out portYes
BIOS2 facts
BIOS
BIOS typeUEFI AMI
Clear CMOS jumperYes

Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.

Manufacturer documents · links to the manufacturer’s site

Product guides & documents

  • User manual PDF, 2.7 MB, EN opens the manufacturer’s site
3 questions answered

Questions and answers

About this product

Is the ASUS TUF Gaming B550-PLUS AMD wireless?
Wi-Fi: no. Ethernet LAN: yes.Source: manufacturer specification
Which operating systems are supported?
Windows: Windows 10 x64. Mac: .Source: manufacturer specification
How big and heavy is it?
305 mm wide, 244 mm deep, 68 mm high; weight 945 g.Source: manufacturer specification

Ask a person on our contact page - quote the product reference 4718017749435 in your message.

Ask a person

Answers restate the manufacturer’s specification shown on this page. We do not publish other customers’ questions or answers.
