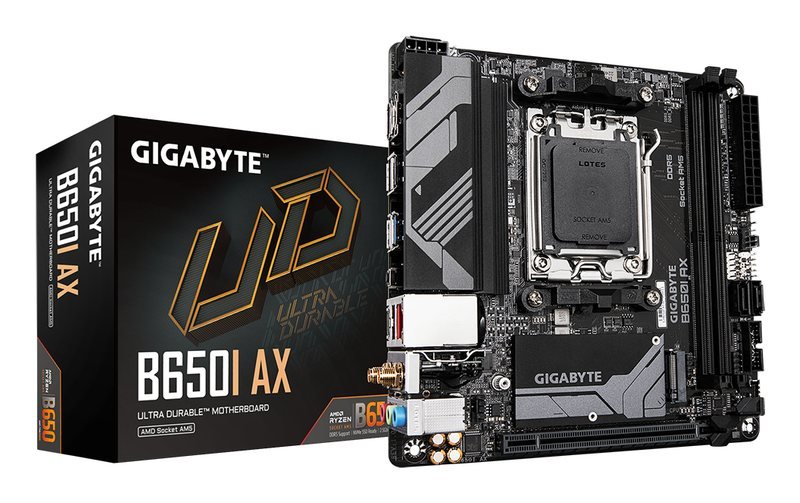

GIGABYTE B650I AX motherboard AMD B650 Socket AM5 mini ITX

by GIGABYTE

EAN 4719331859190 SKU B0CPT8NT17

At a glance

The GIGABYTE B650I AX motherboard AMD B650 Socket AM5 mini ITX (part number B0CPT8NT17) is made by GIGABYTE and is supplied to trade with pricing on enquiry.

About this item

  • AMD Socket AM5:Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
  • Unparalleled Performance:5+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5:2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
  • EZ-Latch:PCIe x16 Slot with Quick Release Design
  • Fast Networks:Wi-Fi 6E 802.11ax & 2.5GbE LAN
  • Extended Connectivity:DP, HDMI
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

Product description

Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

70 facts in 16 groups

Product information

Network8 facts
Network
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerRealtek RTL8125
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller modelRealtek RTL8852CE
BluetoothYes
Memory9 facts
Memory
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds4400,4800,5200,5600,6000,6200,6400 MHz
Supported memory clock speed (max)6400 MHz
Maximum internal memory128 GB
Unbuffered memoryYes
Maximum internal memory per slot64 GB
Features10 facts
Features
Motherboard chipsetAMD B650
Audio chipRealtek ALC897
Audio output channels7.1 channels
Product colourBrown
PC health monitoringFan, Temperature, Voltage
Component forPC
Motherboard form factormini ITX
Motherboard chipset familyAMD
Power source typeATX
Windows operating systems supportedWindows 10 x64, Windows 11 x64
Weight & dimensions3 facts
Weight & dimensions
Width170 mm
Depth170 mm
Height35 mm
Packaging content4 facts
Packaging content
Batteries includedYes
Antenna includedYes
Screws includedYes
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Packaging data4 facts
Packaging data
Package width222 mm
Package depth180 mm
Package height65 mm
Package weight879 g
Logistics data1 fact
Logistics data
Country of originChina
Identifiers & variants3 facts
Identifiers & variants
EAN / GTIN-134719331859190
Manufacturer part numberB650I AX
Amazon ASINB0CPT8NT17
Battery4 facts
Battery
Battery weight3 g
Lithium weight per battery0.07 g
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Processor4 facts
Processor
Processor manufacturerAMD
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor socketsSocket AM5
Storage controllers3 facts
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
RAID supportYes
Graphics4 facts
Graphics
Parallel processing technology supportNot supported
Maximum resolution4096 x 2160 pixels
HDCPYes
Discrete graphics supportYes
Internal I/O8 facts
Internal I/O
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
12V power connectorYes
RGB LED pin headerYes
Rear panel I/O ports2 facts
Rear panel I/O ports
Line-inYes
Microphone inYes
BIOS2 facts
BIOS
BIOS typeUEFI AMI
Clear CMOS jumperYes
Technical details1 fact
Technical details
Warranty period3 year(s)

Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.

Manufacturer documents · links to the manufacturer’s site

Product guides & documents

  • User manual PDF, 14.1 MB, EN opens the manufacturer’s site
6 questions answered

Questions and answers

About this product

What is the maximum print resolution?
4096 x 2160 pixels.Source: manufacturer specification
Is the GIGABYTE B650I AX wireless?
Wi-Fi: yes (802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)). Ethernet LAN: yes.Source: manufacturer specification
Which operating systems are supported?
Windows: Windows 10 x64, Windows 11 x64. Mac: .Source: manufacturer specification
How does the GIGABYTE B650I AX connect?
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax); Bluetooth: 5.3.Source: manufacturer specification
How is the GIGABYTE B650I AX powered?
Power source: ATX.Source: manufacturer specification
How big is it?
170 mm wide, 170 mm deep, 35 mm high.Source: manufacturer specification

Ask a person on our contact page - quote the product reference 4719331859190 in your message.

Ask a person

Answers restate the manufacturer’s specification shown on this page. We do not publish other customers’ questions or answers.
