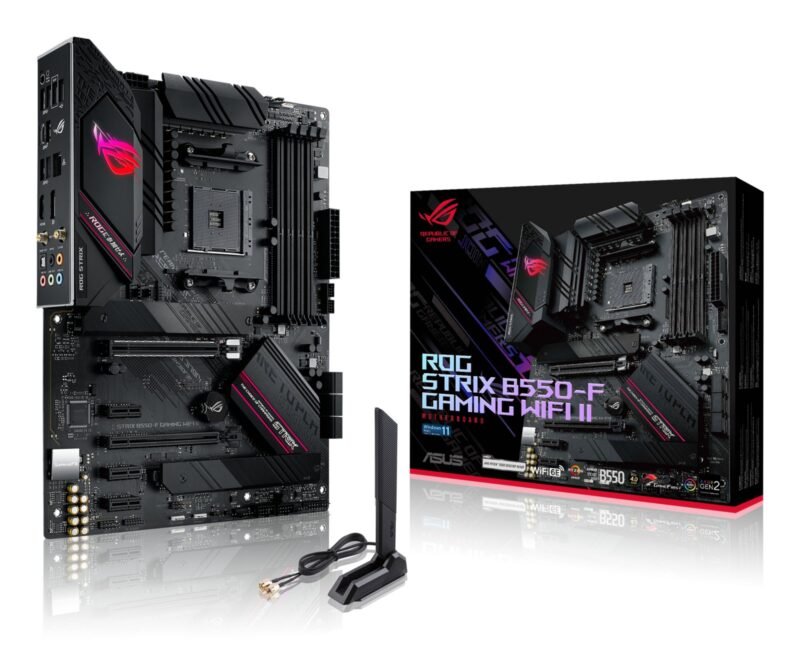

ASUS ROG STRIX B550-F GAMING WIFI II AMD B550 Socket AM4 ATX

by ASUS

EAN 4711081453314 SKU B09LVQCMK4

At a glance

The ASUS ROG STRIX B550-F GAMING WIFI II AMD B550 Socket AM4 ATX (part number B09LVQCMK4) is made by ASUS and is supplied to trade with pricing on enquiry.

Delivery time5 to 7 days

About this item

  • Smooth networking: On-board WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
  • Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
  • Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking for easy configuration
  • DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBackTM, Q-LEDs and SafeSlot
  • Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers

Product description

ASUS ROG STRIX B550-F GAMING WIFI II. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Intel I225-V, Top Wi-Fi standard: Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

48 facts in 14 groups

Product information

Product details1 fact
Product details
Delivery time5 to 7 days
Network8 facts
Network
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerIntel I225-V
Wake-on-LAN readyYes
Wi-FiYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
BluetoothYes
Memory5 facts
Memory
Supported memory typesDDR4-SDRAM
Memory slots typeDIMM
ECC сompatibilityECC
Supported memory clock speeds2133,2400,2666,2800,3000,3200,3466,3600,3866,4000,4133,4400,4600 MHz
Maximum internal memory128 GB
Features9 facts
Features
Motherboard chipsetAMD B550
Audio output channels7.1 channels
Product colourBlack
Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Cooling typeActive
Power source typeATX
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
Weight & dimensions3 facts
Weight & dimensions
Width305 mm
Depth244 mm
Height68 mm
Packaging content2 facts
Packaging content
Cables includedSATA
Drivers includedYes
Other features1 fact
Other features
Weight945 g
Identifiers & variants3 facts
Identifiers & variants
EAN / GTIN-134711081453314
Manufacturer part number90MB19V0-M0EAY0
Amazon ASINB09LVQCMK4
Processor4 facts
Processor
Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Ryzen 3000 Series
Supported processor socketsSocket AM4
Storage controllers3 facts
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
RAID supportYes
Graphics2 facts
Graphics
Parallel processing technology supportNot supported
On-board graphics cardNo
Internal I/O4 facts
Internal I/O
CPU fan connectorYes
EPS power connector (8-pin)Yes
12V power connectorYes
RGB LED pin headerYes
Rear panel I/O ports2 facts
Rear panel I/O ports
Microphone inYes
S/PDIF out portYes
BIOS1 fact
BIOS
BIOS typeUEFI AMI

Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.

Manufacturer documents · links to the manufacturer’s site

Product guides & documents

  • User manual PDF, 6.1 MB, EN opens the manufacturer’s site
5 questions answered

Questions and answers

About this product

Is the ASUS ROG STRIX B550-F GAMING wireless?
Wi-Fi: yes (802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)). Ethernet LAN: yes.Source: manufacturer specification
Which operating systems are supported?
Windows: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64. Mac: .Source: manufacturer specification
How does the ASUS ROG STRIX B550-F GAMING connect?
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax); Bluetooth: 5.2.Source: manufacturer specification
How is the ASUS ROG STRIX B550-F GAMING powered?
Power source: ATX.Source: manufacturer specification
How big and heavy is it?
305 mm wide, 244 mm deep, 68 mm high; weight 1.33 kg.Source: manufacturer specification

Ask a person on our contact page - quote the product reference 4711081453314 in your message.

Ask a person

Answers restate the manufacturer’s specification shown on this page. We do not publish other customers’ questions or answers.
