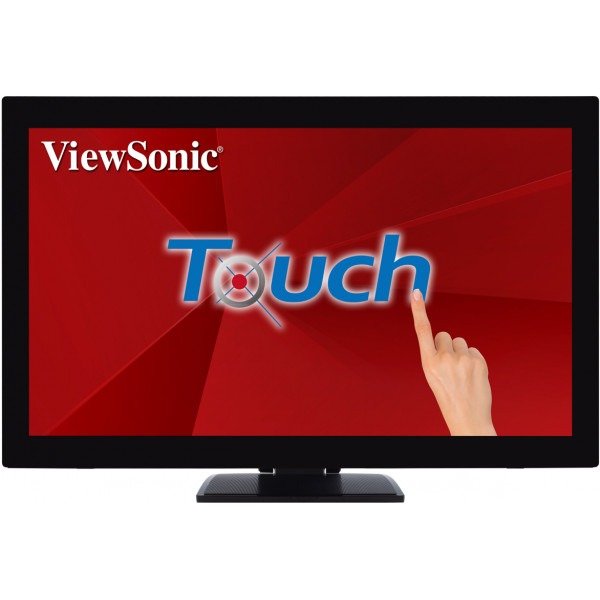

TD2760

SKU TD2760

At a glance

The TD2760 (part number TD2760) is supplied to trade with pricing on enquiry.

MPNTD2760
Delivery time2 to 3 days
80 facts in 13 groups

Product information

Product details2 facts
Product details
MPNTD2760
Delivery time2 to 3 days
Display30 facts
Display
Display diagonal68.6 cm (27")
Display resolution1920 x 1080 pixels
HD typeFull HD
Native aspect ratio16:9
Display technologyLED
Panel typeVA
LED backlightYes
Backlight typeLED
TouchscreenYes
Touchscreen typeMulti-user
Touchscreen technologyProjected capacitive system
Touch technologyMulti-touch
Display brightness300 cd/m²
Response time6 ms
Anti-glare screenYes
Screen shapeFlat
Aspect ratio16:9
Contrast ratio (typical)3000:1
Contrast ratio (dynamic)50000000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colours16.78 million colours
Pixel pitch0.311 x 0.311 mm
Horizontal scan range15 - 90 kHz
Vertical scan range50 - 76 Hz
Viewable size, horizontal59.8 cm
Viewable size, vertical33.6 cm
Display diagonal (metric)68.58 cm
Surface hardness6H
Separate H/V syncYes
Performance2 facts
Performance
NVIDIA G-SYNCNo
AMD FreeSyncNo
Multimedia4 facts
Multimedia
RMS rated power4 W
Built-in speaker(s)Yes
Built-in microphoneNo
Built-in cameraNo
Design2 facts
Design
Product colourBlack
Glass thickness1.88 mm
Ports & interfaces5 facts
Ports & interfaces
Built-in USB hubYes
USB hub version3.2 Gen 1 (3.1 Gen 1)
USB upstream port typeUSB Type-B
HDMIYes
HDCPYes
Ergonomics8 facts
Ergonomics
VESA mountingYes
Panel mounting interface100 x 100 mm
Wall mountableYes
Cable lock slotYes
Cable lock slot typeKensington
Tilt adjustmentYes
Tilt angle range-4 - 90°
On Screen Display (OSD)Yes
Power8 facts
Power
Energy efficiency class (SDR)F
Energy consumption (SDR) per 1000 hours19 kWh
Power consumption (typical)26 W
Power consumption (standby)0.3 W
Power consumption (off)0.3 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power supply typeAC
Operational conditions1 fact
Operational conditions
Operating temperature (T-T)0 - 40 °C
Weight & dimensions8 facts
Weight & dimensions
Width (with stand)660 mm
Depth (with stand)239 mm
Height (with stand)443 mm
Weight (with stand)7.9 kg
Width (without stand)660 mm
Depth (without stand)58 mm
Height (without stand)410 mm
Weight (without stand)5.5 kg
Packaging data4 facts
Packaging data
Package width753 mm
Package depth204 mm
Package height525 mm
Package weight10.2 kg
Packaging content2 facts
Packaging content
Cables includedPower, VGA, HDMI, USB, Audio
Quick start guideYes
Other features4 facts
Other features
Weight7.9 kg
Mean time between failures (MTBF)30000 h
Supplied AC adapter typeAC
CertificationMX-CoC, Mexico Energy, CE, CE EMC, CB

Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.

TD2760Ask for a quote
