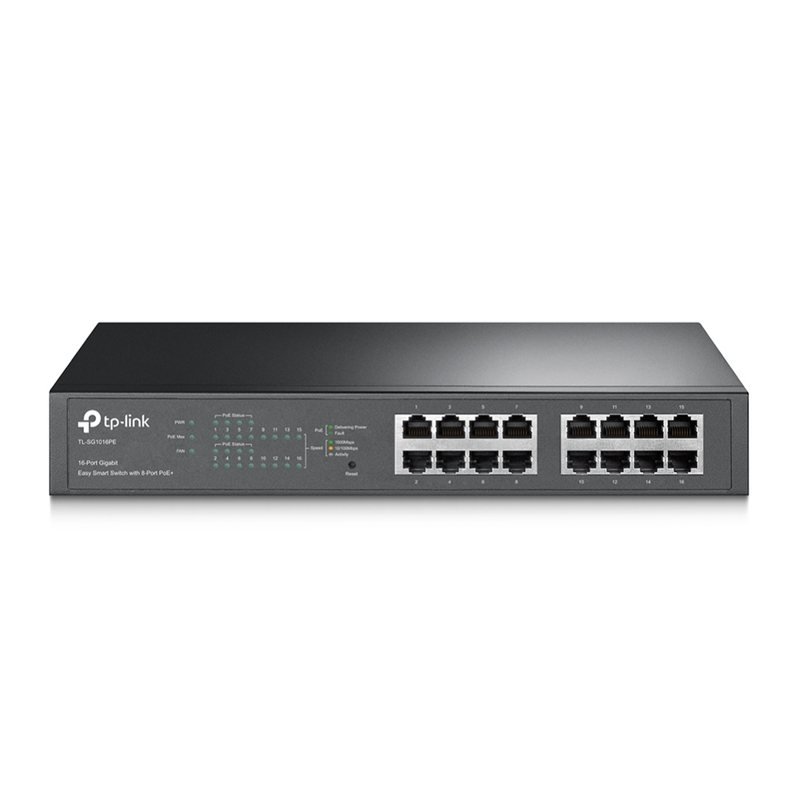

TP-Link TL-SG1016PE network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
EAN 1210002616775 SKU B0722XW4PD
1 / 4At a glance
The TP-Link TL-SG1016PE network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black (part number B0722XW4PD) is made by TP-Link and is supplied to trade with pricing on enquiry.
About this item
- 16× 10/100/1000Mbps RJ45 ports
- Equipped with 8× PoE+ supported ports to transfer data and power over a single cable
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration
Product description
TP-Link TL-SG1016PE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE…. Power over Ethernet (PoE). Rack mounting
Product information
Network14 facts
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
Ports & interfaces1 fact
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
Design5 facts
| Rack mounting | Yes |
|---|---|
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 1 fan(s) |
Power4 facts
| Power supply included | Yes |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 124.4 W |
Operational conditions2 facts
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions3 facts
| Width | 294 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
Packaging content2 facts
| Cables included | AC |
|---|---|
| Rack mount kit | Yes |
Certificates1 fact
| Certification | FCC, CE, RoHS |
|---|
Identifiers & variants3 facts
| EAN / GTIN-13 | 1210002616775 |
|---|---|
| Manufacturer part number | TL-SG1016PE |
| Amazon ASIN | B0722XW4PD |
Management features4 facts
| Switch type | Managed |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Data transmission3 facts
| Switching capacity | 32 Gbit/s |
|---|---|
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
Security3 facts
| IGMP snooping | Yes |
|---|---|
| Static port security | Yes |
| Loop protection | Yes |
Power over Ethernet (PoE)3 facts
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 150 W |
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
Product guides & documents
- Product Brochure PDF, 0.3 MB, EN opens the manufacturer’s site
- User manual PDF, 4.7 MB, EN opens the manufacturer’s site
Questions and answers
About this product
- How is the TP-Link TL-SG1016PE powered?
- Power over Ethernet: Yes; power consumption: 124.4 W.Source: manufacturer specification
- How big and heavy is it?
- 294 mm wide, 180 mm deep, 44 mm high; weight 1.70 kg.Source: manufacturer specification
Ask a person on our contact page - quote the product reference 1210002616775 in your message.
Answers restate the manufacturer’s specification shown on this page. We do not publish other customers’ questions or answers.
