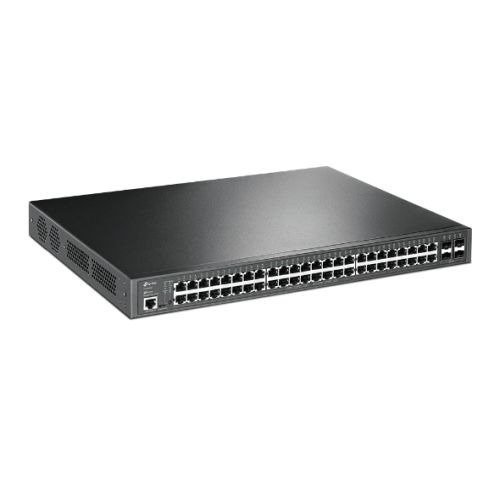

TP-LINK (SG3452P) JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+, 4 SFP Slots, Rackmountable

SKU SG3452P

At a glance

The TP-LINK (SG3452P) JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+, 4 SFP Slots, Rackmountable (part number SG3452P) is supplied to trade with pricing on enquiry.

MPNSG3452P
Delivery time2 to 3 days
64 facts in 13 groups

Product information

Product details2 facts
Product details
MPNSG3452P
Delivery time2 to 3 days
Management features8 facts
Management features
Switch typeManaged
Switch layerL2/L3
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
ARP inspectionYes
System event logYes
MIB supportYes
Ports & interfaces3 facts
Ports & interfaces
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Console portRJ-45/micro-USB
Power connectorAC-in jack
Network15 facts
Network
Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
10G supportNo
Port mirroringYes
IP routingYes
Policy-based routingYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
Head-of-line (HOL) blockingYes
Ethernet LAN data rates10,100,1000 Mbit/s
Active link detectionYes
VLAN supportYes
Virtual LAN featuresMAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Data transmission5 facts
Data transmission
Switching capacity104 Gbit/s
Store-and-forwardYes
Static routeYes
Jumbo frames supportYes
Packet buffer memory12 MB
Security8 facts
Security
DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)Yes
IGMP snoopingYes
SSH/SSL supportYes
Loop protectionYes
BPDU filtering/protectionYes
AuthenticationMAC-based authentication, Port-based authentication
Password protectionYes
Multicast features1 fact
Multicast features
Multicast supportYes
Protocols2 facts
Protocols
Management protocolsSNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)Yes
Design6 facts
Design
Rack mountingYes
Form factor1U
Product colourBlack
Reset buttonYes
LED indicatorsYes
Number of fans3 fan(s)
Power5 facts
Power
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)464.2 W
Power over Ethernet (PoE)3 facts
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget384 W
Operational conditions3 facts
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Heat dissipation1584.08 BTU/h
Weight & dimensions3 facts
Weight & dimensions
Width440 mm
Depth330 mm
Height44 mm

Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
