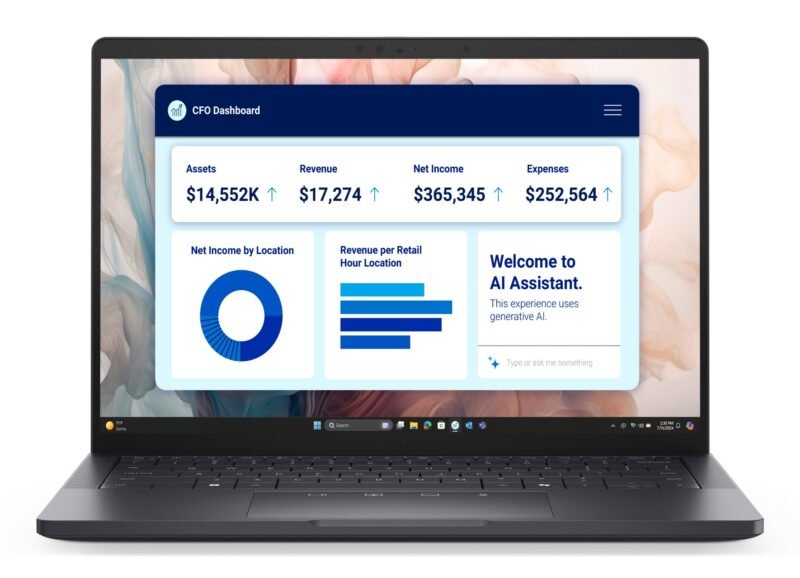

9XTX5
SKU 9XTX5
1 / 1At a glance
The 9XTX5 (part number 9XTX5) is supplied to trade with pricing on enquiry.
MPN9XTX5
Delivery time2 to 3 days
Product information
Product details2 facts
| MPN | 9XTX5 |
|---|---|
| Delivery time | 2 to 3 days |
Design5 facts
| Product type | Laptop |
|---|---|
| Product colour | Grey |
| Form factor | Clamshell |
| Housing material | Magnesium |
| Intel® vPro™ Platform Eligibility | Yes |
Display16 facts
| Display diagonal | 33.8 cm (13.3") |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | Full HD+ |
| Panel type | IPS WVA |
| Display technology marketing name | ComfortView Plus |
| LED backlight | Yes |
| Anti-glare screen | Yes |
| Display brightness | 400 cd/m² |
| Pixel pitch | 0.14 x 0.14 mm |
| Pixel density | 170 ppi |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Display response rise/fall | 35 ms |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1500:1 |
Processor12 facts
| Processor manufacturer | Intel |
|---|---|
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 236V |
| Processor boost frequency | 4.7 GHz |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Low Power Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core base frequency | 2.1 GHz |
| Low Power Efficient-core Base Frequency | 2100 MHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor base power | 17 W |
| Maximum turbo power | 37 W |
Neural processor unit (NPU)5 facts
| Copilot+ PC | Yes |
|---|---|
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
Memory5 facts
| Internal memory | 16 GB |
|---|---|
| Internal memory type | LPDDR5x-SDRAM |
| Memory form factor | On-board |
| Maximum internal memory | 16 GB |
| Memory data transfer rate | 8533 MT/s |
Storage11 facts
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| SSD capacity | 512 GB |
| SSD memory type | TLC |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2230 (22 x 30 mm) |
| Optical drive type | No |
| Card reader integrated | No |
Graphics6 facts
| Discrete graphics card model | Not available |
|---|---|
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card | No |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics 130V |
Audio3 facts
| Audio chip | Cirrus CS42L43 / Cirrus CS35L56 |
|---|---|
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera7 facts
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 8 MP |
| Front camera resolution | 2560 x 1440 pixels |
| Video capturing speed | 30 fps |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network8 facts
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
|---|---|
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| WLAN controller model | Intel Wi-Fi 7 BE201 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | No |
| Bluetooth | Yes |
Ports & interfaces4 facts
| Intel® Thunderbolt 4 | Yes |
|---|---|
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| PowerShare | Yes |
Performance3 facts
| Motherboard chipset | Intel SoC |
|---|---|
| Accelerometer | Yes |
| Hall sensor | Yes |
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
