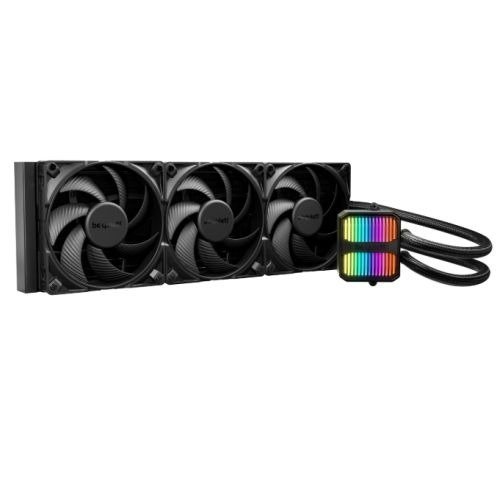

BW026
SKU BW026
1 / 1At a glance
The BW026 (part number BW026) is supplied to trade with pricing on enquiry.
MPNBW026
Delivery time2 to 3 days
Product information
Product details2 facts
| MPN | BW026 |
|---|---|
| Delivery time | 2 to 3 days |
Performance16 facts
| Suitable location | Processor |
|---|---|
| Type | All-in-one liquid cooler |
| Fan diameter | 14 cm |
| Supported processor sockets | LGA 1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4, Socket TR5 |
| Noise level (low speed) | 19.4 dB |
| Noise level (high speed) | 34.3 dB |
| Maximum airflow | 78.4 cfm |
| Airflow | 133.2 m³/h |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Pump connector | 4-pin |
| Pump motor speed | 3500 RPM |
| Pump motor speed (min) | 1700 RPM |
| Pump motor speed (max) | 3500 RPM |
| Fan speed (max) | 1900 RPM |
| Fan's mean time to failure (MTTF) | 300000 h |
Design9 facts
| Product colour | Black |
|---|---|
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans | 3 fan(s) |
| Illumination LED | Yes |
| Illumination colour | Multi |
| LED connector type | 3-pin |
| Fan connector | 4-pin |
| Display type | Not applicable |
Power4 facts
| Fan power consumption | 3.6 W |
|---|---|
| LED voltage | 5 V |
| Fan voltage | 12 V |
| Fan current | 0.3 A |
Weight & dimensions17 facts
| Width | 140 mm |
|---|---|
| Radiator width | 14 cm |
| Radiator depth | 45.7 cm |
| Radiator height | 2.7 cm |
| Depth | 52 mm |
| Tube length | 40 cm |
| Waterblock width | 8 cm |
| Waterblock depth | 5.6 cm |
| Waterblock height | 9.35 cm |
| Height | 475 mm |
| Weight | 2.01 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Cable length | 0.5 m |
| Package width | 204 mm |
| Package depth | 499 mm |
| Package height | 154 mm |
| Package weight | 3.3 kg |
Technical details3 facts
| Sustainability certificates | Triman |
|---|---|
| Warranty period | 3 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE |
Packaging content5 facts
| Package type | Box |
|---|---|
| Mounting kit | Yes |
| Screws included | Yes |
| Manual | Yes |
| CPU bracket(s) | Yes |
Other features1 fact
| Thermal grease | Yes |
|---|
Logistics data4 facts
| Shipping (inner) case width | 42.4 cm |
|---|---|
| Shipping (inner) case length | 51.1 cm |
| Shipping (inner) case height | 33.6 cm |
| Shipping (inner) case gross weight | 14.8 kg |
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
BW026
