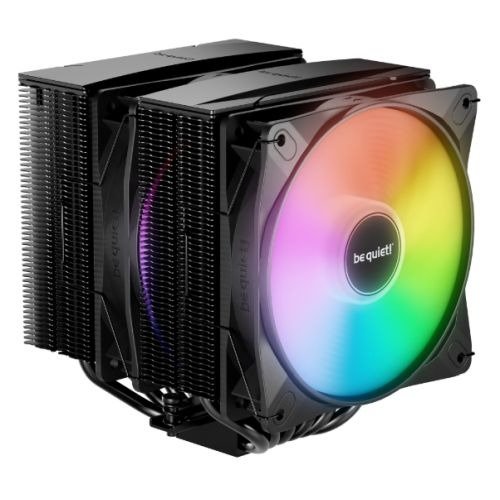

BK043
SKU BK043
1 / 1At a glance
The BK043 (part number BK043) is supplied to trade with pricing on enquiry.
MPNBK043
Delivery time2 to 3 days
Product information
Product details2 facts
| MPN | BK043 |
|---|---|
| Delivery time | 2 to 3 days |
Performance12 facts
| Suitable location | Processor |
|---|---|
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5 |
| Rotational speed (max) | 2000 RPM |
| Noise level (low speed) | 14 dB |
| Noise level (high speed) | 34.8 dB |
| Maximum airflow | 61.8 cfm |
| Airflow | 105.1 m³/h |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Rifle bearing |
| Fan's mean time to failure (MTTF) | 60000 h |
Design8 facts
| Product colour | Black |
|---|---|
| Base plate material | Copper |
| Number of fans | 2 fan(s) |
| Fins material | Aluminium |
| Illumination LED | Yes |
| Illumination colour | Multi |
| Fan connector | 4-pin |
| Display type | Not applicable |
Power4 facts
| Fan power consumption | 5.4 W |
|---|---|
| Thermal Design Power (TDP) | 250 W |
| Fan voltage | 12 V |
| Fan current | 0.1 A |
Weight & dimensions15 facts
| Width | 124 mm |
|---|---|
| Radiator width | 12.4 cm |
| Radiator depth | 11.4 cm |
| Radiator height | 15.5 cm |
| Depth | 139 mm |
| Height | 155 mm |
| Weight | 1.08 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Fan thickness | 2.5 cm |
| Heat pipes diameter | 6 mm |
| Cable length | 0.12 m |
| Package width | 178 mm |
| Package depth | 163 mm |
| Package height | 210 mm |
| Package weight | 1.4 kg |
Technical details3 facts
| Sustainability certificates | Triman |
|---|---|
| Warranty period | 3 year(s) |
| Compliance certificates | CE, RoHS, TÜV mark, UKCA, UL, WEEE |
Packaging content1 fact
| Mounting kit | Yes |
|---|
Logistics data4 facts
| Shipping (inner) case width | 34.2 cm |
|---|---|
| Shipping (inner) case length | 55.2 cm |
| Shipping (inner) case height | 45 cm |
| Shipping (inner) case gross weight | 17.9 kg |
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
