B0DLWFBHSL
EAN 0840033402897 SKU B0DLWFBHSL

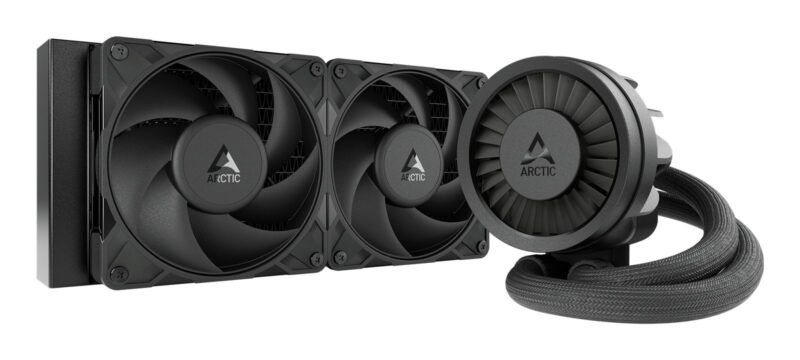

1 / 5At a glance
The B0DLWFBHSL (part number B0DLWFBHSL) is made by ARCTIC and is supplied to trade with pricing on enquiry.
In ARCTIC’s words
PWM-controlled fan lowers the voltage regulator temperature, ensuring stable performance.
Shifts the cold plate to the CPU hotspot for more efficient heat transfer.
Optimized contact pressure distribution for longer CPU lifespan and improved heat dissipation.
Fan cables integrated into the sleeving simplify installation and minimize cable clutter.
The P12 Pro unleashes its full potential: quieter and more powerful at low speeds, with greater performance reserves under load—for maximum cooling without compromise.
The 38 mm radiator not only enhances heat dissipation but also holds more liquid than conventional 27 mm radiators.
This reduces heat buildup and ensures more efficient handling of temperature spikes.
Reinforced EPDM tubing with braided sheathing for increased durability
Pre-installed, pre-wired fans, straightforward mounting, and an animated online manual.
Simply apply in a cross pattern—the water pump’s cold plate distributes the paste evenly
With the splitter cable, the pump, VRM fan, and radiator fans can be controlled separately or synchronized via a single PWM signal with the all-in-one cable.
Manufacturer copy reproduced from ARCTIC’s product data. Claims with conditions attached, and any not supported by the specification table, are omitted.
Product description
Type: All-in-one liquid cooler, Fan diameter: 12 cm, Airflow: 131 m3/h, Bearing type: Fluid Dynamic Bearing (FDB). Product colour: Black
Product information
Design7 facts
| Product colour | Black |
|---|---|
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans | 2 fan(s) |
| Illumination LED | No |
| Fan connector | 4-pin |
| Display type | Not applicable |
Power4 facts
| Pump voltage | 12 V |
|---|---|
| Pump current | 350 mA |
| Fan voltage | 12 V |
| Fan current | 0.33 A |
Weight & dimensions16 facts
| Radiator width | 12 cm |
|---|---|
| Radiator depth | 27.7 cm |
| Radiator height | 3.8 cm |
| Tube length | 45 cm |
| Tube diameter | 1.24 cm |
| Tube inner diameter | 6 mm |
| Pump width | 9.1 cm |
| Pump depth | 10.8 cm |
| Pump height | 6.85 cm |
| Weight | 1.68 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Cable length | 0.04 m |
| Package width | 171 mm |
| Package depth | 294 mm |
| Package height | 142 mm |
| Package weight | 2.06 kg |
Packaging content1 fact
| Package type | Hanging box |
|---|
Other features1 fact
| Country of origin | Hong Kong |
|---|
Identifiers & variants2 facts
| EAN / GTIN-13 | 0840033402897 |
|---|---|
| Amazon ASIN | B0DLWFBHSL |
Performance16 facts
| Suitable location | Processor |
|---|---|
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1851, LGA 1700, Socket AM4, Socket AM5 |
| Maximum airflow | 77 cfm |
| Airflow | 131 m³/h |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Pump connector | 4-pin |
| Pump motor speed (min) | 800 RPM |
| Pump motor speed (max) | 2800 RPM |
| Fan speed (min) | 600 RPM |
| Fan speed (max) | 3000 RPM |
| VRM fan speed (min) | 400 RPM |
| VRM fan speed (max) | 2500 RPM |
| Operating temperature (T-T) | 0 - 40 °C |
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
Product guides & documents
- Product Brochure PDF, 1.1 MB, EN opens the manufacturer’s site
Questions and answers
About this product
- How heavy is it?
- 1.68 kg.Source: manufacturer specification
Ask a person on our contact page - quote the product reference 0840033402897 in your message.
Answers restate the manufacturer’s specification shown on this page. We do not publish other customers’ questions or answers.
