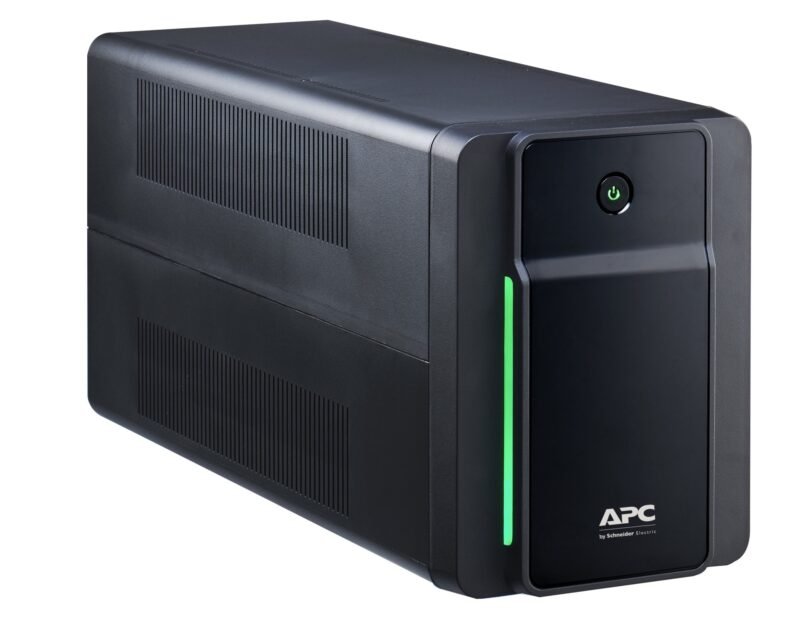

APC Back-UPS BX Series BX2200MI - UPS - 1200 Watt - 2200 VA
SKU BX2200MI
1 / 1At a glance
The APC Back-UPS BX Series BX2200MI - UPS - 1200 Watt - 2200 VA (part number BX2200MI) is supplied to trade with pricing on enquiry.
MPNBX2200MI
Delivery time2 to 3 days
Product information
Product details2 facts
| MPN | BX2200MI |
|---|---|
| Delivery time | 2 to 3 days |
Features17 facts
| UPS topology | Line-Interactive |
|---|---|
| Output power | 1200 W |
| Waveform | Sine |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Output frequency regulation | 0.5 Hz |
| Output voltage regulation | 10% |
| Automatic Voltage Regulation (AVR) | Yes |
| Response time | 6 ms |
| Noise level | 40 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Audible alarm modes | Low battery alarm |
Ports & interfaces6 facts
| AC outlet types | C13 coupler |
|---|---|
| Power plug | C13 coupler |
| USB port | Yes |
| USB port type | USB Type-B |
| SmartSlot | No |
| SmartConnect port | No |
Battery5 facts
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Typical backup time at full load | 1 min |
| Typical backup time at half load | 8.5 min |
| Battery life (max) | 2 year(s) |
| Battery recharge time | 8 h |
Design5 facts
| Form factor | Compact |
|---|---|
| Cable length | 1.2 m |
| Product colour | Black |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
Operational conditions3 facts
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 40 °C |
| Operating altitude | 0 - 3000 m |
Certificates2 facts
| Compliance certificates | RoHS |
|---|---|
| Certification | CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2 |
Packaging content3 facts
| Cables included | Input power cable |
|---|---|
| Management card included | No |
| Manual | Yes |
Weight & dimensions4 facts
| Width | 140 mm |
|---|---|
| Depth | 390 mm |
| Height | 190 mm |
| Weight | 12.3 kg |
Packaging data4 facts
| Package width | 235 mm |
|---|---|
| Package depth | 495 mm |
| Package height | 297 mm |
| Package weight | 13.3 kg |
