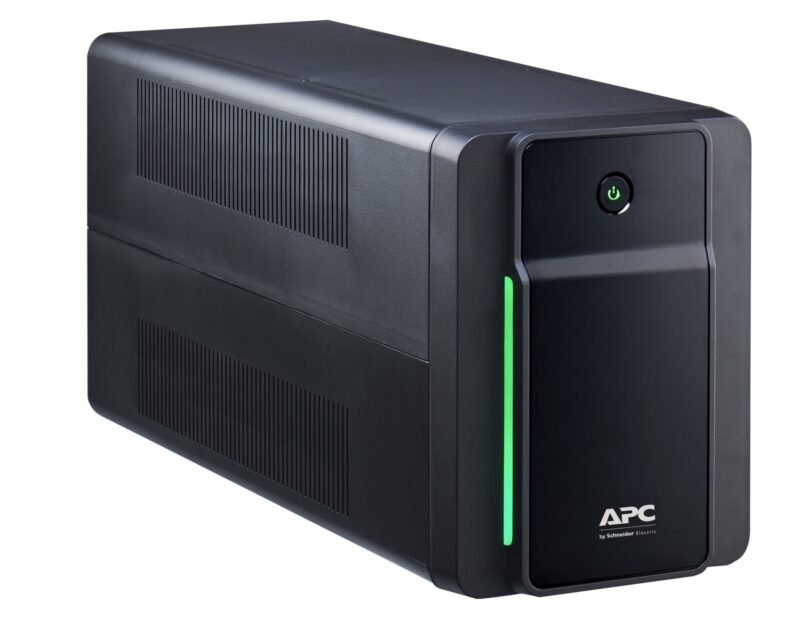

APC Back-UPS, 1600VA, Tower, 230V, 6x IEC C13 outlets, AVR
EAN 0731304410829 SKU B08G8WTFJV
1 / 9At a glance
The APC Back-UPS, 1600VA, Tower, 230V, 6x IEC C13 outlets, AVR (part number B08G8WTFJV) is made by APC and is supplied to trade with pricing on enquiry.
Product description
APC Back-UPS, 1600VA, Tower, 230V, 6x IEC C13 outlets, AVR. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 24 V. Form factor: Compact, Product colour: Black, Cable length: 1.2 m. Compliance certificates: RoHS, Certification: CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
Product information
Ports & interfaces6 facts
| AC outlet types | C13 coupler |
|---|---|
| Power plug | C13 coupler |
| USB port | Yes |
| USB port type | USB Type-B |
| SmartSlot | No |
| SmartConnect port | No |
Features16 facts
| UPS topology | Line-Interactive |
|---|---|
| Output power | 900 W |
| Waveform | Sine |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Output frequency regulation | 0.5 Hz |
| Output voltage regulation | 10% |
| Automatic Voltage Regulation (AVR) | Yes |
| Response time | 6 ms |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| Audible alarm modes | Low battery alarm |
Design6 facts
| Form factor | Compact |
|---|---|
| Cable length | 1.2 m |
| Built-in fan | Yes |
| Product colour | Black |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
Operational conditions3 facts
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 40 °C |
| Operating altitude | 0 - 3000 m |
Weight & dimensions4 facts
| Width | 140 mm |
|---|---|
| Depth | 390 mm |
| Height | 190 mm |
| Weight | 10.3 kg |
Packaging content3 facts
| Cables included | Input power cable |
|---|---|
| Management card included | No |
| Manual | Yes |
Packaging data4 facts
| Package width | 390 mm |
|---|---|
| Package depth | 140 mm |
| Package height | 190 mm |
| Package weight | 11.3 kg |
Certificates2 facts
| Compliance certificates | RoHS |
|---|---|
| Certification | CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2 |
Identifiers & variants3 facts
| EAN / GTIN-13 | 0731304410829 |
|---|---|
| Manufacturer part number | BX1600MI |
| Amazon ASIN | B08G8WTFJV |
Battery7 facts
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery capacity | 7 Ah |
| Battery voltage | 24 V |
| Typical backup time at full load | 1 min |
| Typical backup time at half load | 6.5 min |
| Battery life (max) | 2 year(s) |
| Battery recharge time | 8 h |
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
Product guides & documents
- Product Brochure PDF, 0.3 MB, EN opens the manufacturer’s site
Questions and answers
About this product
- Where can it be installed?
- Compact.Source: manufacturer specification
- How big and heavy is it?
- 140 mm wide, 390 mm deep, 190 mm high; weight 10.30 kg.Source: manufacturer specification
Ask a person on our contact page - quote the product reference 0731304410829 in your message.
Answers restate the manufacturer’s specification shown on this page. We do not publish other customers’ questions or answers.
